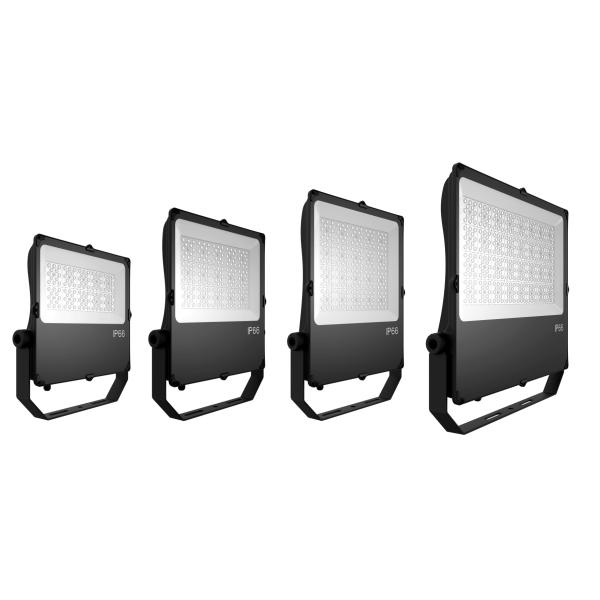

30W LED Flood Light 4000K 130LM/W IK08 IP66 Waterproof With Beam Angle 120° For Park and Square
Features:
• IP66 Waterproof/ dustproof/ explosion proof/ IK08
• Pure Aluminum shape good at heat dissipation.
• Angle Bracket, easy to install by drill.
• Easy replacement and installation.
• 100,000 times switching cycle before failure.
• SMD 3030 Ra>80/R9>0/SDCM<6
• Total harmonic distortion < 15%
Matters Needing Attention:
1. Before installing the lighting fixtures, please read this instruction manual careful.
2. The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
3. Lamps should always be installed or replaced carefully.
4. Please check the local voltage in accordance with the product requirements before installation.
5. Revamping only can be done when the power is off and the lamp is completely cooled down.
6. When clean the lamp, make the power off and let it cool down completely, clean the fixture with a soft cloth and a standard PH neutral detergent, stainless steel should be maintained regularly.
7. Don't cover the fixtures with flammable materials.
8. Replace should be made by the manufactor of his service agent or certified electrician in order to avoid a hazard.
Applications:
Commercial Lighting Public Lighting Industrial Lighting
Tunnel Tunnel Manufacture
Supermarkets Airports Warehouses
Large retailers Stadium Parking Lots
School Train Stations Exhibition Centers
Billboard Bus Stations Gas Stations
Building Toll Stations

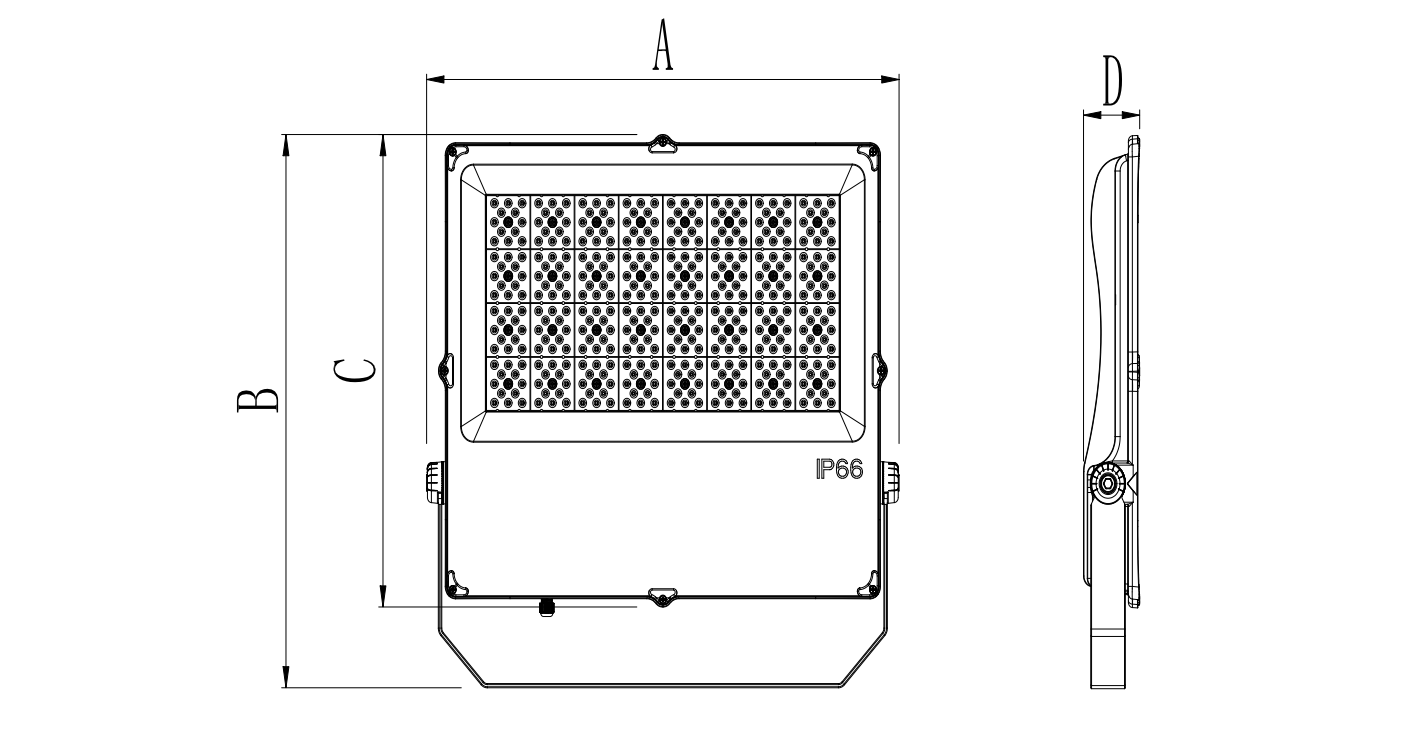

Dimension:
| Model NO. | Size A (mm) | Size B (mm) | Size C (mm) | Size D (mm) |
| 20W | 122 | 182 | 150 | 47 |
| 30W | 169 | 248 | 200 | 51 |
| 50W | 228 | 288 | 230 | 52 |
| 100W | 278 | 364 | 300 | 52 |
| 150W | 394 | 394 | 325 | 56 |
| 200W | 394 | 445 | 376 | 56 |
| 250W | 394 | 497 | 427 | 58 |
| 400W | 545 | 523 | 447 | 65 |
| Model NO. | Size A (mm) | Size B (mm) | Size C (mm) |
| 20W | 84 | 44 | 6.5 |
| 30W | 112 | 72 | 8 |
| 50W | 140 | 100 | 10.5 |
| 100W | 200 | 100 | 10.5 |
| 150W | 200 | 100 | 10.5 |
| 200W | 200 | 100 | 10.5 |
| 250W | 200 | 100 | 10.5 |
| 400W | 200 | 100 | 10.5 |
Parameter:
| Model NO. | Power (W) | Light Source | LED QTY | CCT (K) | Lumen lm/w | CRI | Beam Angle |
| 20W | 20 | 3030 | 16 | 4000K | 130 | >70/80 | 120° |
| 30W | 30 | 3030 | 32 | 4000K | 130 | >70/80 | 120° |
| 50W | 50 | 3030 | 48 | 4000K | 130 | >70/80 | 120° |
| 100W | 100 | 3030 | 96 | 4000K | 130 | >70/80 | 120° |
| 150W | 150 | 3030 | 160 | 4000K | 130 | >70/80 | 120° |
| 200W | 200 | 3030 | 240 | 4000K | 130 | >70/80 | 120° |
| 250W | 250 | 3030 | 240 | 4000K | 130 | >70/80 | 120° |
| 300W | 300 | 3030 | 320 | 4000K | 130 | >70/80 | 120° |
| 400W | 400 | 3030 | 510 | 4000K | 130 | >70/80 | 120° |
CCT Range WW (3000K), NW(4000K), DW(5000K), CW(6500K)
Beam Angle: 30°, 30°*90°, 60°, 90°, 120°
| Item | Symbol | Specification/Data |
| Color Index | CRI | Ra>80, R9>0 |
| Luminous Efficacy | lm/w | 130lm/w |
| Energy Efficiency Class | / | A++ |
| Color consistency in level | / | Max.6SDCM |
| THD | % | <15% |
| Starting time | S | <0.5S |
| Switching cycle before failure | / | >100,000 times |
| Premature failure rate @1000h | / | 0 |
| Lifespan | / | >50000hrs |

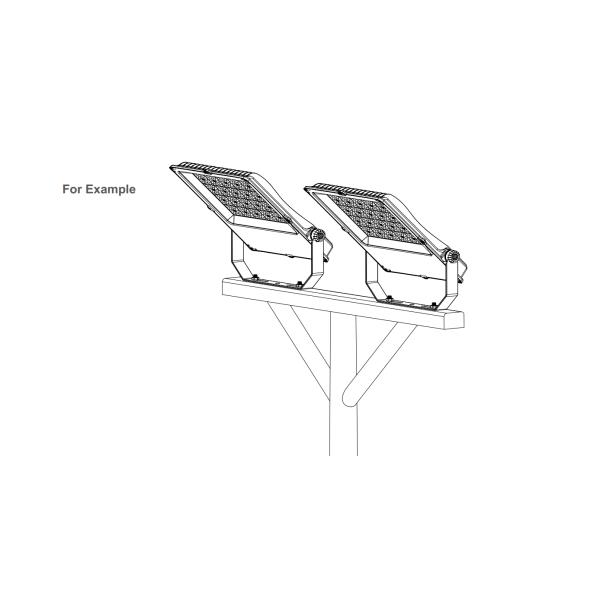

Installation:
Packaging:
| Model No | Single Box | Pcs/CTN | N.W./pcs(kg) | G.W./CTN (kg) | Meas (mm) |
| 20W | 1 | 20 | 0.8 | 16 | 405*275*290 |
| 30W | 1 | 10 | 1.2 | 12 | 365*270*315 |
| 50W | 1 | 10 | 1.8 | 18 | 475*310*315 |
| 100W | 1 | 5 | 2.6 | 13 | 390*305*315 |
| 150W | 1 | 1 | 5.1 | 5.6 | 440*420*115 |
| 200W | 1 | 1 | 5.8 | 6.6 | 490*420*115 |
| 250W | 1 | 1 | 7.1 | 8.1 | 540*420*115 |
| 300W | 1 | 1 | 7.6 | 8.6 | 540*420*115 |
| 400W | 1 | 1 | 10.8 | 12.3 | 580*550*115 |
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
